The Rotary Tablet Press ZP-41D is an efficient, multi punch rotary tablet press suitable for large-scale production of tablets. It compresses powder or granular raw materials through rotating molds and pistons to form uniform tablets. The device is equipped with a high-precision control system that can automatically adjust parameters such as pressure, filling amount, and tablet pressing speed to ensure product quality and production efficiency.
Powder or granular raw materials enter the feeding system through a hopper and are evenly distributed into the mold cavity under the action of a distributor.

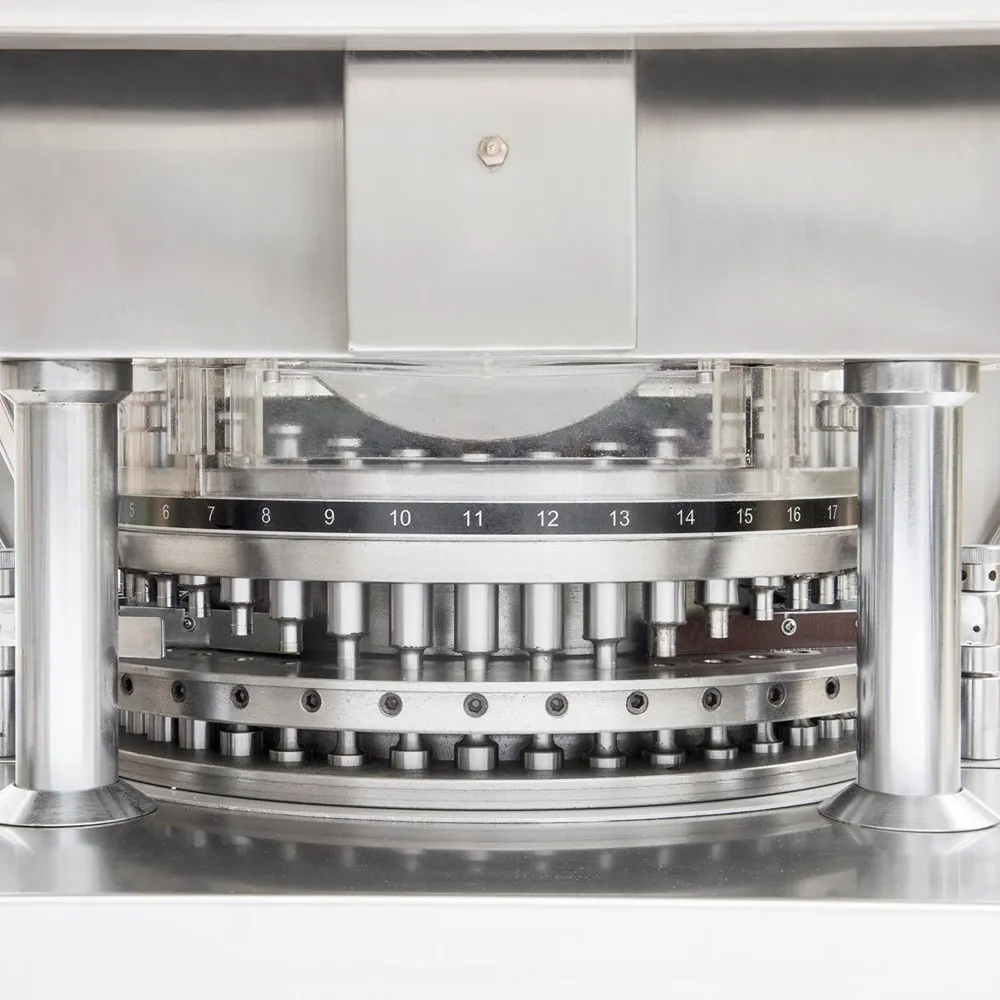

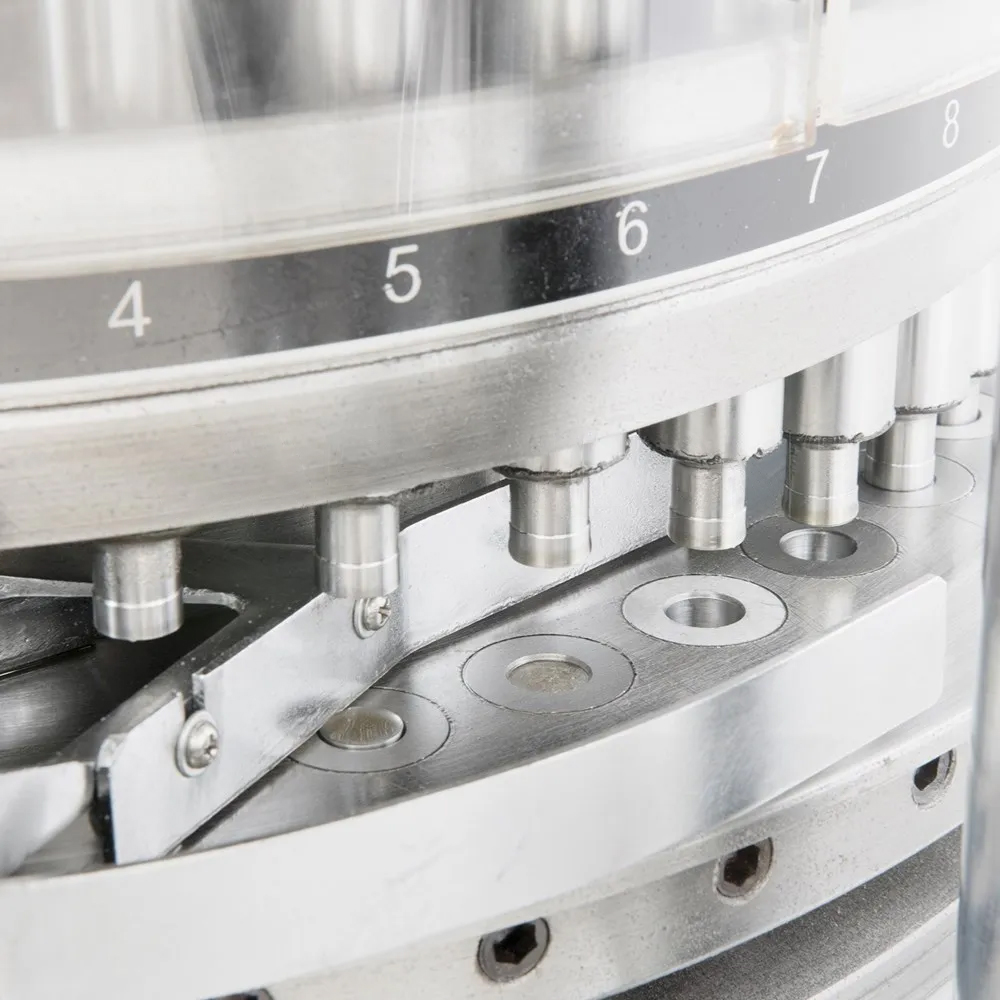

The mold continuously passes through the upper and lower pressing molds as the machine rotates. The raw materials are compressed into tablets under pressure. During this process, pressure, speed, and filling amount can be adjusted according to demand to ensure the uniformity and hardness of the tablets.
After compression, the tablets are pushed into the tablet discharge system and discharged through an automatic unloading device, with a high degree of automation throughout the entire process.
The equipment is equipped with an advanced control system, and the operator can adjust parameters such as tablet pressure, speed, and filling amount to ensure consistency and quality of each batch of tablets.
| Model | ZP-41D |
|---|---|
| Punch quantity (set) | 41 |
| Max. tablet pressure (kN) | 80 |
| Max. tablet diameter (mm) | 13(18) |
| Max. tablet thickness (mm) | 6 |
| Max. filling depth (mm) | 15 |
| Max. production capacity (pc/h) | 170,000 |
Turntable working diameter(mm) | 420 |
Turntable speed(rpm) | 14~36 |
Die diameter (mm) | 26 |
Die height(mm) | 22 |
Upper and lower punch length(mm) | 115 |
Machine footprint (mm) | 1230*950 |
| Machine height (mm) | 1,670 |
| Machine weight (kg) | 1,700 |
Rotary Press ZP-41D has high production efficiency and is suitable for large-scale tablet production, especially for production lines with medium to high output demands.
The device is equipped with an advanced control system that can accurately adjust the pressing pressure, filling amount, and production speed to ensure the stability of tablet quality.
Using high-quality materials and precision machining technology, Rotary Press ZP-41D has good stability and reliability during long-term operation, reducing equipment failure rates.
Different shapes and sizes of tablets can be produced according to needs to meet different production requirements.
The device has a user-friendly interface and adopts automated control, reducing manual intervention. Daily maintenance is also relatively convenient and easy to clean.
The design and manufacturing of this equipment comply with GMP standards for drug production and are suitable for the needs of the pharmaceutical industry.
Pharmaceutical industry: tablets, vitamin tablets, herbal extract tablets, etc.
Food industry: milk tablets, candy tablets, mint tablets, enzyme tablets, etc.
Chemical industry: catalyst tablets, deodorizing tablets, aromatic tablets, etc.
Electronic/metallurgical industry: battery material pressing, alloy powder pressing, etc.
Agricultural industry: feed additive tablets, insecticide tablets, etc.
