The machine is compliance with the GMP requirement on the production of pharmaceuticals.
The compression parts is entirely separated from the driving mechanism.
The compression area is enclosed with transparent organic glass. To prevent contaminates. The compression area can be specially treated. All surface being smooth and easy to clean.
The mechanical buffer unit will prevent punches and apparatus from overload damage.
| Mold | ZPDT420-35D |
| Number of Dies (Pairs) | 35 |
| Maximum Pressure (KN) | 120 |
| Maximum Diameter (mm) | 16 |
| Maximum Tablet Thickness (mm) | 7 |
| Maximum Filling Depth (mm) | 15 |
| Maximum Rotary Speed (rpm) | 35 |
| Diameter of upper and lower punch rods(mm) | 26 |
| Outer diameter of the middle mold(mm) | 30 |
| Maximum tablet production(pcs/h) | 170000 |
| Power(KW) | 5.5 |
| Net weight(KG) | 1420 |
| Overall Dimensions (mm) | 870*970*1560 |
| Machine footprint (mm²) | 1002*970 |

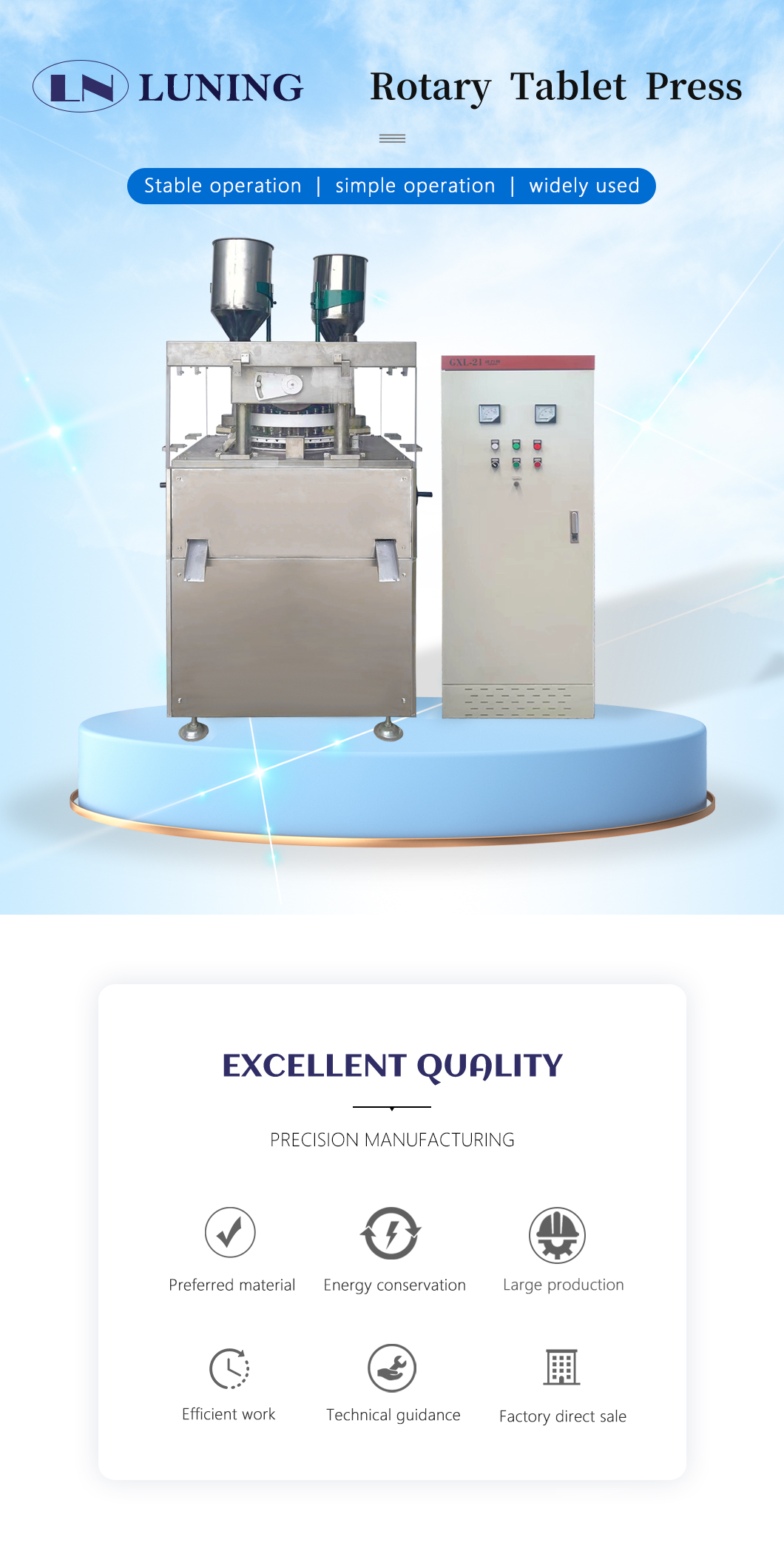

Stable Operation | Simple Operation | Widely Used
Product Feature：
· Equipped with automatic braking device.
· Equipped with powder suction box.
· Equipped with a self spraying demolding device.
· Equipped with double envelope reducer.

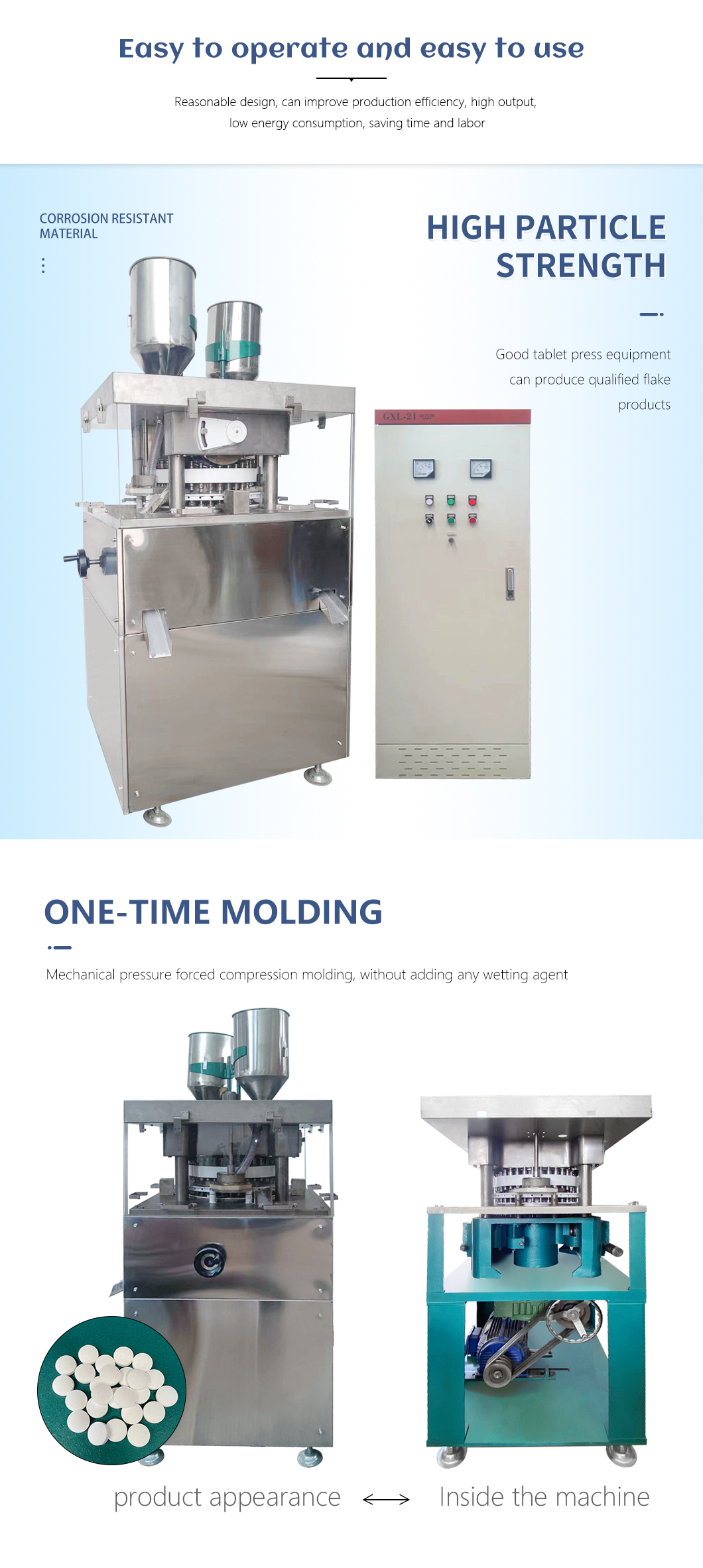

Easy To Operate And Easy To Use
· Reasonable design, can improve production efficiency, high output, low energy consumption, saving time and labor.

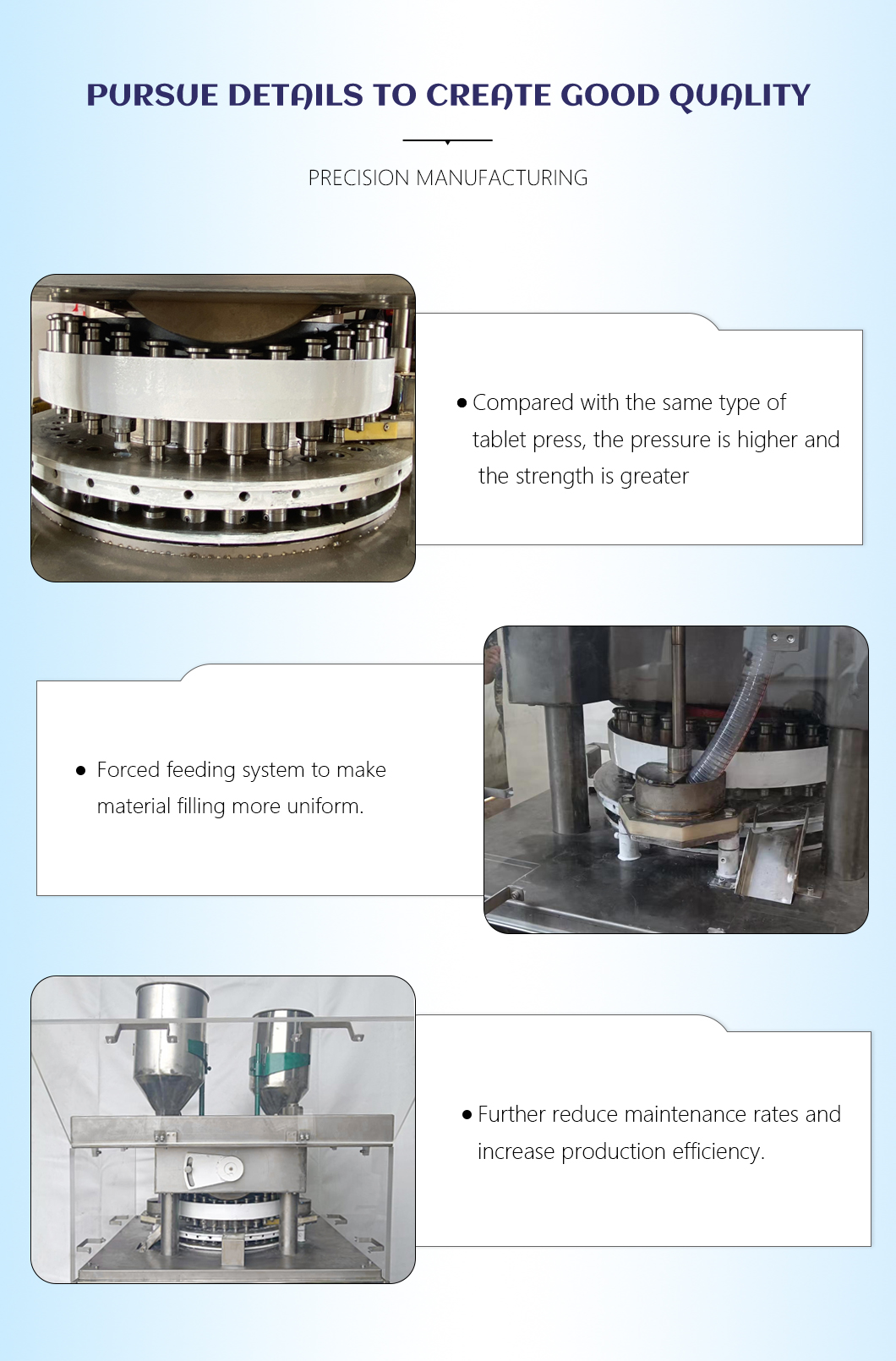

Pursue details to create good quality
· Compared with the same type of tablet press, the pressure is higher and the strength is greater.
· Forced feeding system to make material filling more uniform.
· Further reduce maintenance rates and increase production efficiency.
