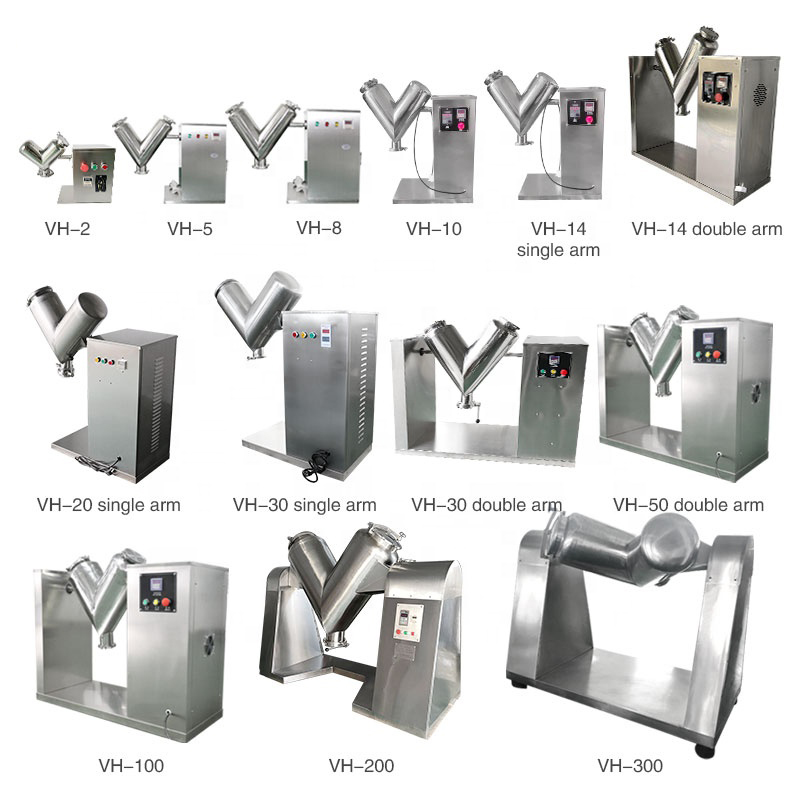

Industrial grade dry powder mixer is a device used for uniformly mixing powder or granular materials, widely used in industries such as chemical, food, pharmaceutical, pesticide, building materials, etc. Among them, 100kg, 200kg, and 300kg refer to the single batch mixing capacity of the equipment, which is suitable for production needs of different scales.

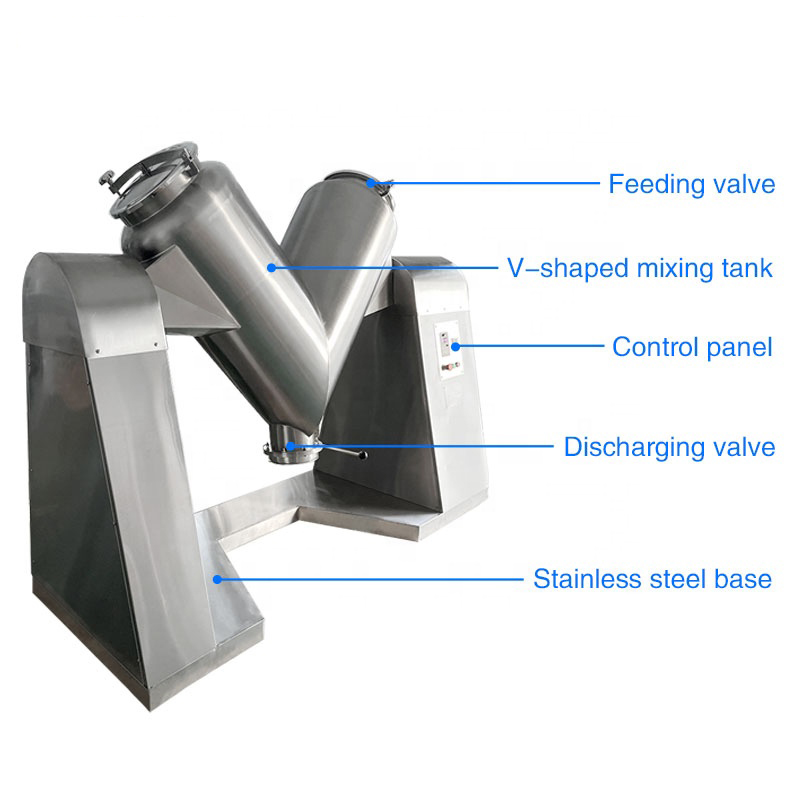

The material is added into the V-shaped cylinder through the feeding port, usually with a filling amount of 40% -60% of the volume, to ensure sufficient flow space for the material during the rotation process.
The V-shaped cylinder rotates around a horizontal axis, and the material is continuously lifted, rolled, separated, and recombined with the movement of the cylinder, resulting in convective mixing. This mixing method does not apply strong shear forces to the material and is suitable for powders and particles that are fragile or have strict particle size distribution requirements.
The material flows freely between the two arms of the V-shaped cylinder. Each time it rotates, the material is divided into two parts and recombined to evenly spread and improve the mixing uniformity.
After reaching the preset mixing time, stop rotating and the material will basically reach a uniform mixing state. The mixing uniformity of a typical V-type mixer can reach over 99%.

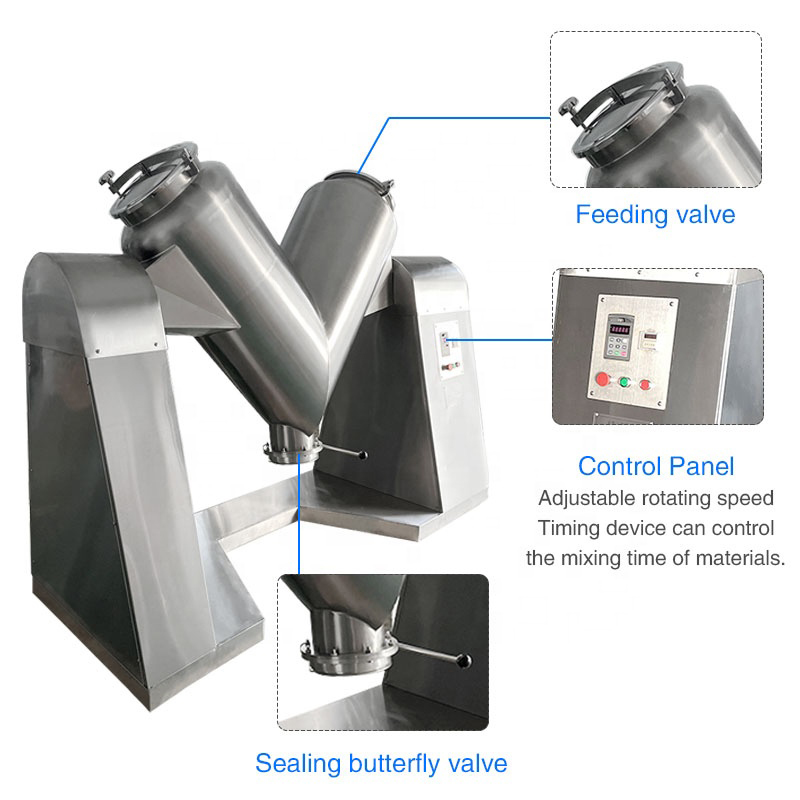

Unloading through the bottom butterfly valve or quick discharge port to avoid material residue, ensure clean discharge, and reduce cross contamination.
Pharmaceutical industry: mixed powder and excipients (requiring GMP certification).
Food industry: seasoning, milk powder, additives (requiring food grade stainless steel).
Chemical industry:dyes, pigments, plastic pellets (requiring anti-corrosion).
Building materials industry:cement, putty powder, ceramic powder (requiring large capacity mixing).
✅ No dead corners, high mixing uniformity: The V-shaped structure continuously separates and merges materials, avoiding local accumulation of materials.
✅ Less damage to materials: No strong stirring or shearing, suitable for brittle or easily crystallized materials.
✅ Suitable for mixing powders and particles: especially suitable for dry powder and granular materials with good fluidity.
✅ Easy to clean: No complex mixing structure, smooth interior, easy to clean, in compliance with GMP standards.
If your material requires high uniformity mixing while avoiding excessive shearing or damaging particle morphology, a V-type mixer is an ideal choice.
