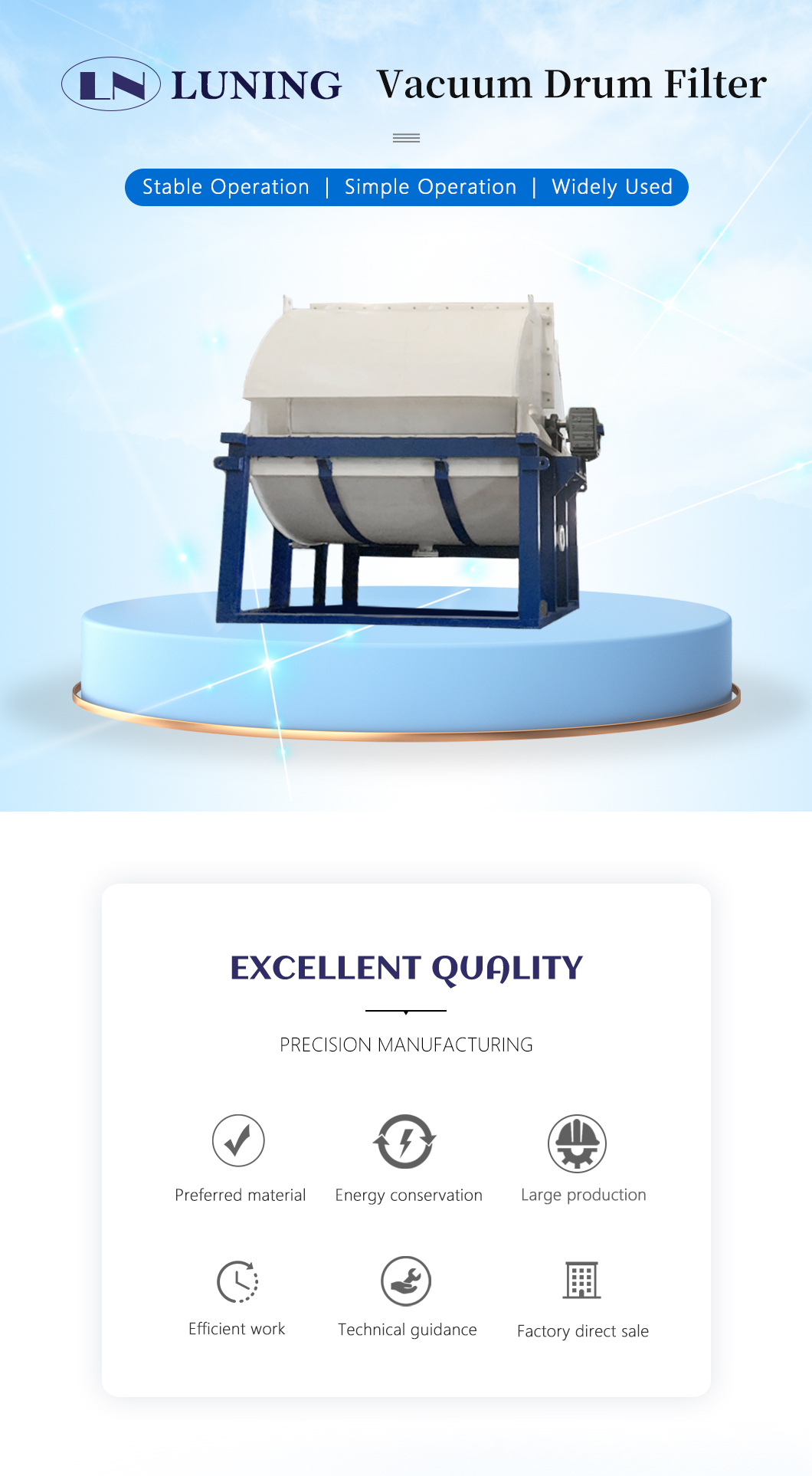

Vacuum drum filter is a continuous vacuum filtration equipment widely used in fields that require solid-liquid separation, such as petroleum, chemical, pharmaceutical, sugar, starch, metallurgy, mining, food, papermaking, desulfurization, sewage treatment, etc. It has the characteristics of continuous filtration, washing, drying, high automation, small footprint, and strong adaptability to materials.
In terms of working principle, the vacuum drum filter uses negative pressure as the filtering driving force, and its filtering surface is located on the surface of the cylindrical drum. The surface of the drum is divided into multiple identical chambers, and through the synchronous operation of the horizontal drum and filter cloth, operations such as filtration, washing, drying, and filter cloth regeneration are achieved. The outer surface of the drum is divided into multiple functional areas, such as the suction filtration area, washing area, drying area, unloading area, etc. The filter cloth can be blown and washed to achieve continuous operation.
The usage characteristics of the vacuum drum filter include a wide range of applicable materials, high filtration efficiency, easy regulation, strong adaptability, and the ability to achieve fully automatic continuous operation. In addition, the equipment has good corrosion resistance and can be made of materials such as stainless steel, plastic, and titanium according to process requirements.
| Type | Filter areas(m2) | Drum dia.(m) | angles (°) | Drum speed(r/min) | weight(kg) | Out sizes(mm) |
| G2/1.0 | 2 | 1.0 | 120 | 0.13~2 | 1520 | 1600x1800x1500 |
| G5/1.6 | 5 | 1.6 | 120 | 0.13~2 | 2500 | 2200x2600x2100 |
| G10/2.0 | 10 | 2.0 | 140 | 0.13~0.79 | 4160 | 3380x3000x2170 |
| G15/2.5 | 15 | 2.5 | 140 | 0.13~0.79 | 5300 | 3860x3100x2750 |
| G20/2.5 | 20 | 2.5 | 140 | 0.13~0.79 | 6320 | 4460x310x2750 |
| G25/2.5 | 25 | 2.5 | 90~140 | 0.13~0.79 | 7040 | 5160x3100x2750 |
| G30/3.0 | 30 | 3.0 | 90~140 | 0.13~0.79 | 8210 | 5100x4372x3570 |
| G35/3.0 | 35 | 3.0 | 90~140 | 0.13~0.79 | 9300 | 5500x4372x3570 |
| G40/3.0 | 40 | 3.0 | 90~140 | 0.13~0.79 | 11600 | 6100x4372x3570 |
| G45/3.0 | 45 | 3.0 | 90~140 | 0.13~0.79 | 12100 | 6600x4372x3570 |
| G50/3.o | 50 | 3.0 | 90~140 | 0.13~0.79 | 13000 | 7400x4372x3570 |
| G60/3.5 | 60 | 3.5 | 90~140 | 0.13~0.79 | 15000 | 7600x4573x4070 |
| G70/3.5 | 70 | 3.5 | 90~140 | 0.13~0.79 | 18600 | 8600x4573x4070 |

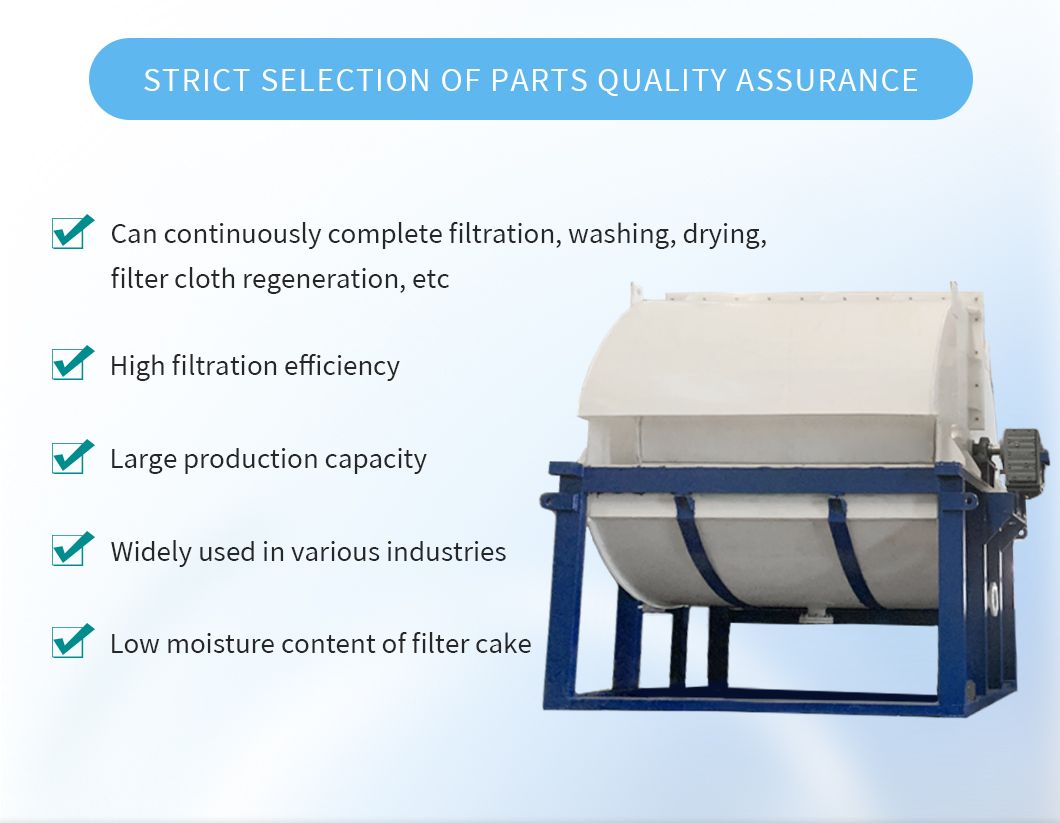

· Can continuously complete filtration, washing, drying, filter cloth regeneration, etc.
· High filtration efficiency.
· Large production capacity.
· Widely used in various industries.
· Low moisture content of filter cake.

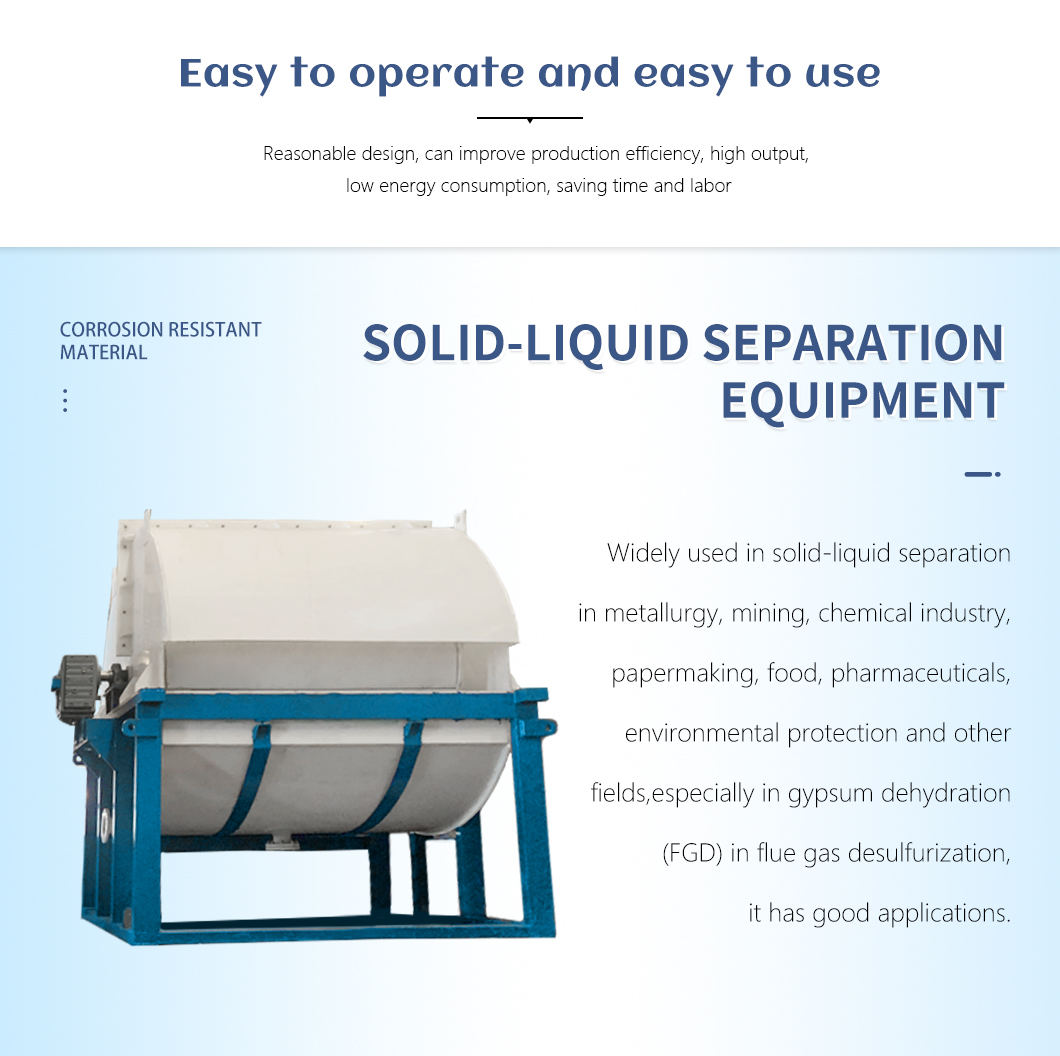

Easy to operate and easy to use
· Reasonable design, can improve production efficiency, high output, low energy consumption, saving time and labor
· Widely used in solid-liquid separation in metallurgy, mining, chemical industry, papermaking, food, pharmaceuticals, environmental protection and other fields,especially in gypsum dehydration (FGD) in flue gas desulfurization, it has good applications.

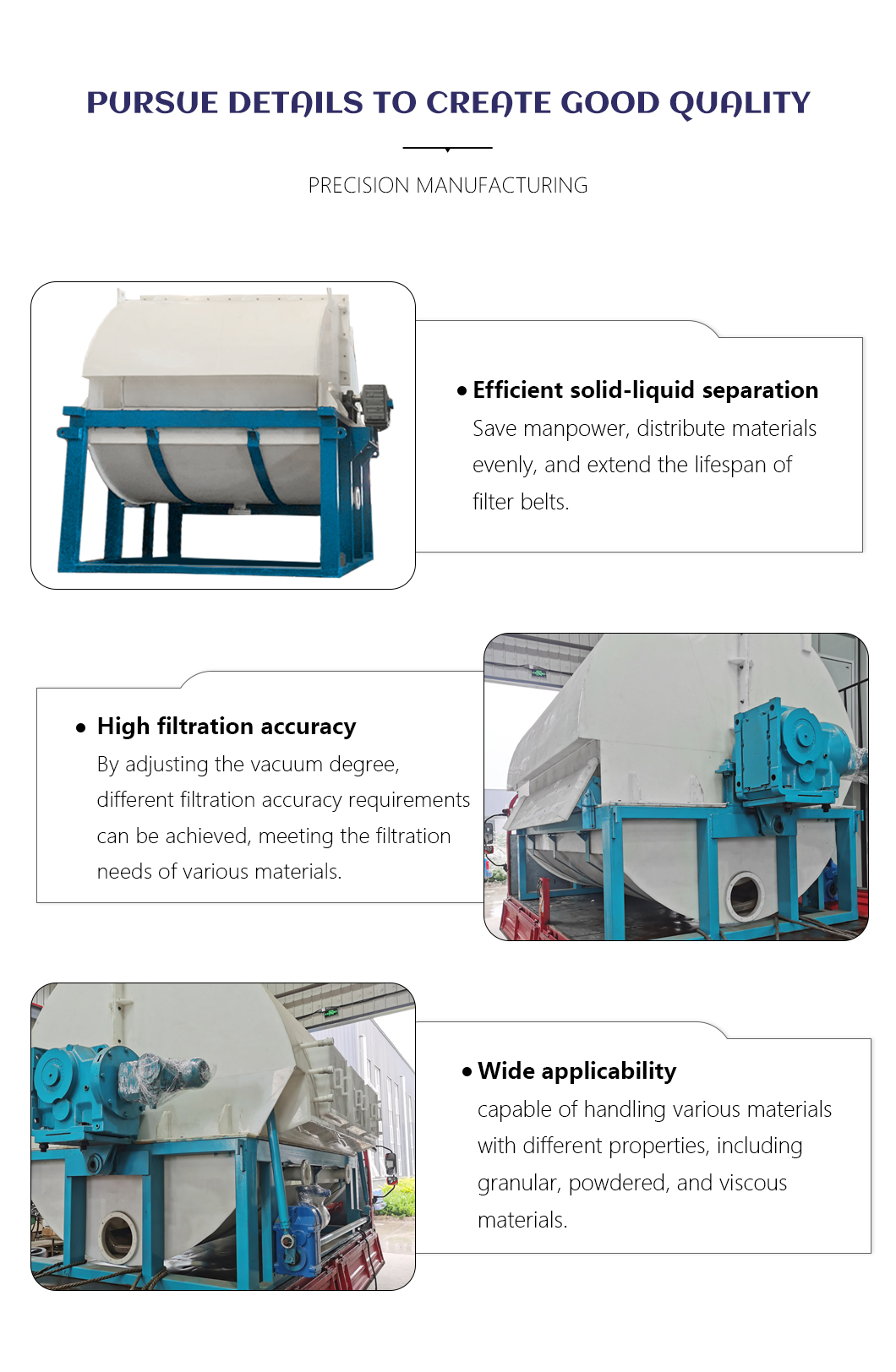

Pursue details to create good quality
Efficient solid-liquid separation
· Save manpower, distribute materials evenly, and extend the lifespan of filter belts.
High filtration accuracy
· By adjusting the vacuum degree, different filtration accuracy requirements can be achieved, meeting the filtration needs of various materials.
Wide applicability
· capable of handling various materials with different properties, including granular, powdered, and viscous materials.
