+Production Description

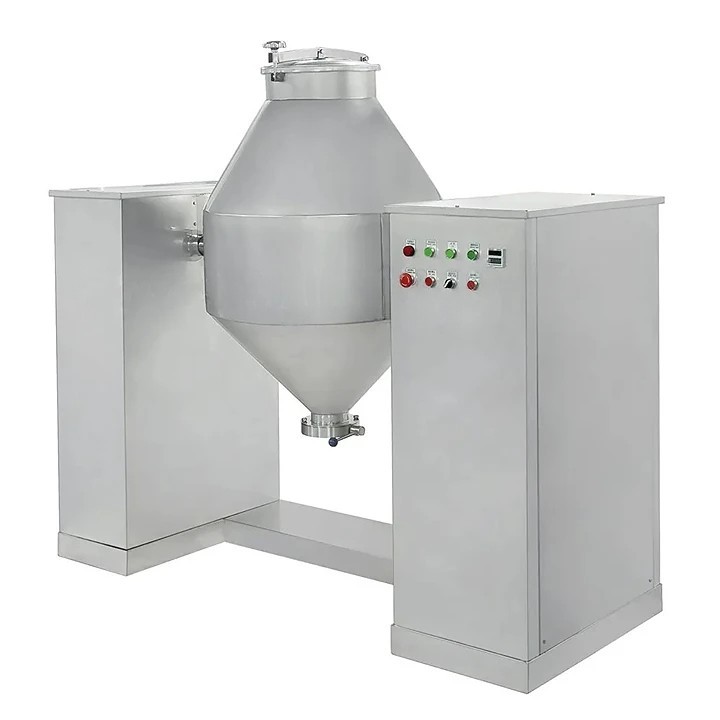

Powder Mixer Machine Double Cone Blender for Pharmaceutical Food Industry

The duble cone mixer is an efficient and uniform powder and particle mixing equipment, widely used in industries such as pharmaceuticals, food, chemicals, metallurgy, and powder metallurgy. This device adopts a double cone container design, utilizing rotational motion to continuously roll, diffuse, and aggregate materials inside the cylinder, thereby achieving efficient and uniform mixing, especially suitable for dry powder or granular materials with good fluidity.

+Working principle

Loading

Powder or granular materials are added into the mixing cylinder through the feeding port, with a general loading capacity of 40-60% of the total volume.

Rotating Mixing

After the device is started, the mixing cylinder rotates 360 ° around its own axis.

Due to the double conical shape of the cylinder, the material continuously slides and rolls under the action of gravity, achieving convective mixing and diffusion mixing.

Due to the lack of high-speed blade stirring, it will not cause shear or damage to the material, making it suitable for brittle or fragile materials.

Uniform Mixing

After a period of rotation, the materials are thoroughly mixed inside the cylinder without dead corners or material accumulation.

Unloading

After mixing is complete, open the unloading port and the material will automatically flow out to reduce residue and facilitate cleaning.

+Characteristics of CH type powder mixer

High mixing uniformity:Double cone structure, 360 ° rolling mixing, ensuring uniformity without dead corners;
304/316L stainless steel material: meets GMP hygiene standards, is corrosion-resistant, and easy to clean;

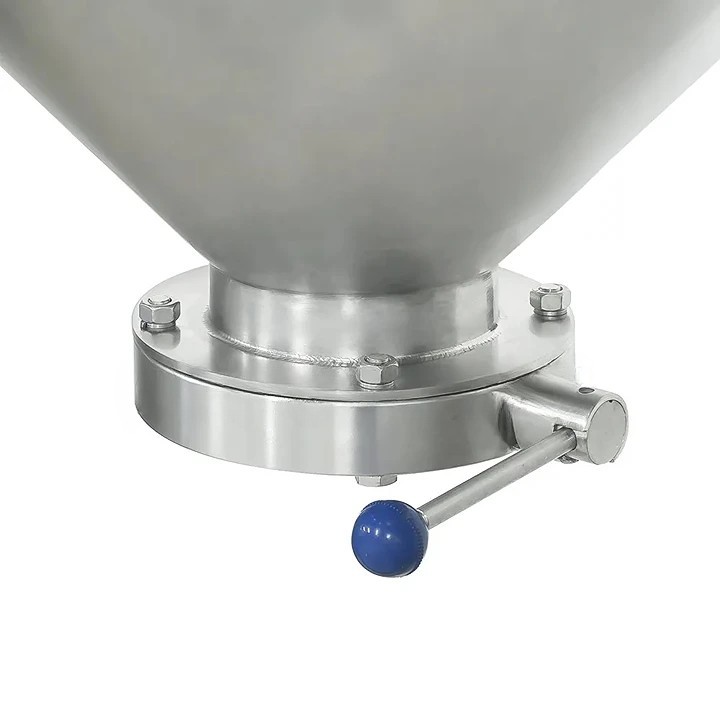

Residual free design: The discharge port is equipped with a sealing device, ensuring smooth discharge and minimal residue;
Low energy consumption and high efficiency:Rotating mixing, avoiding material overheating, low energy consumption, high efficiency;
Easy to operate:PLC control, adjustable mixing time, automatic stop, reducing manual operation;
Customizable: Optional functions such as vacuum feeding, liquid spraying device, variable frequency speed regulation, etc., to meet different process requirements.

+Application scenarios:

Pharmaceutical industry: mixture of traditional Chinese medicine powder, western medicine powder, and tablet powder;
Food industry: seasoning, milk powder, protein powder, food additives, etc;
Chemical industry: dyes, pigments, plastic powders, additives, etc;
Metallurgical industry: metal powders, ceramic materials, magnetic materials, etc.
